4G Smart control Power Mini Relay with SOS
Main Features:
1. Network: 4G LTE CAT1+ 2G GSM/GPRS
2. ACC Detection
3.Mini and Hidden Design
4. GNSS+LBS+BDS+AGPS Positioning Ways.
5. Realtime Tracking.

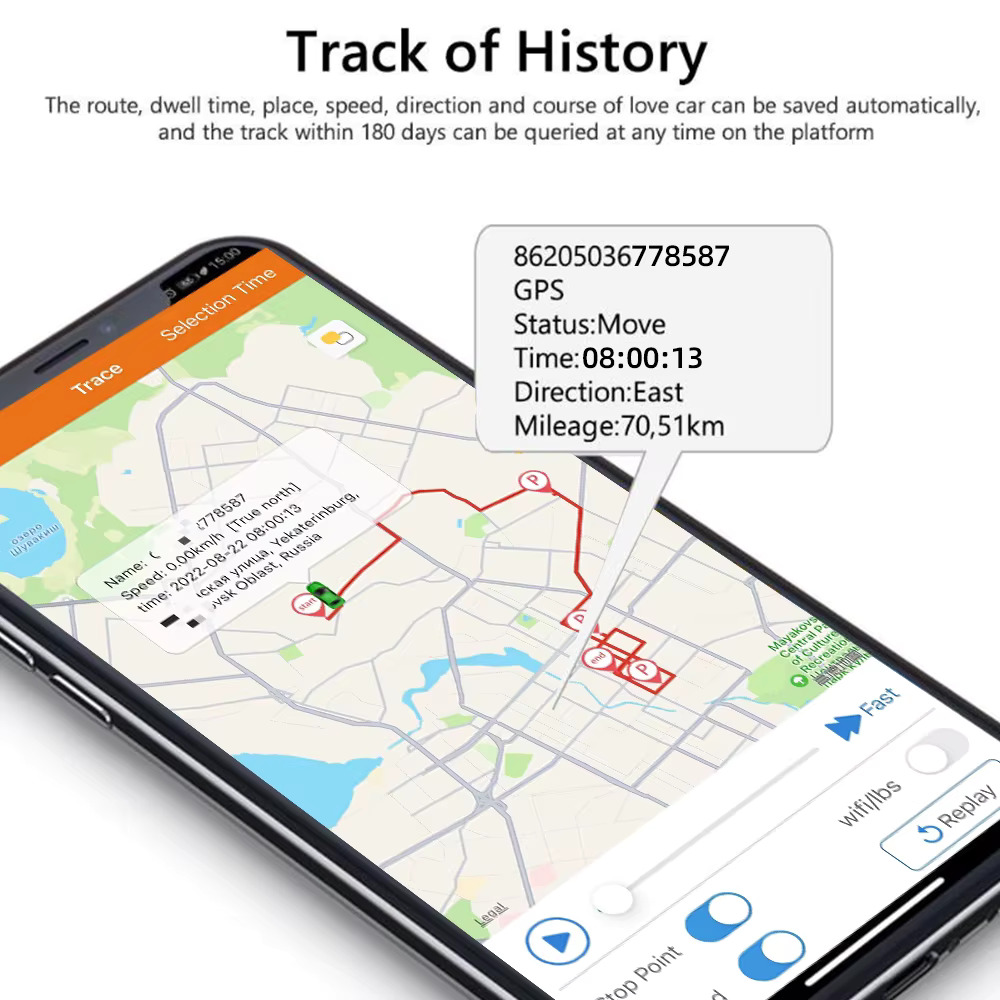

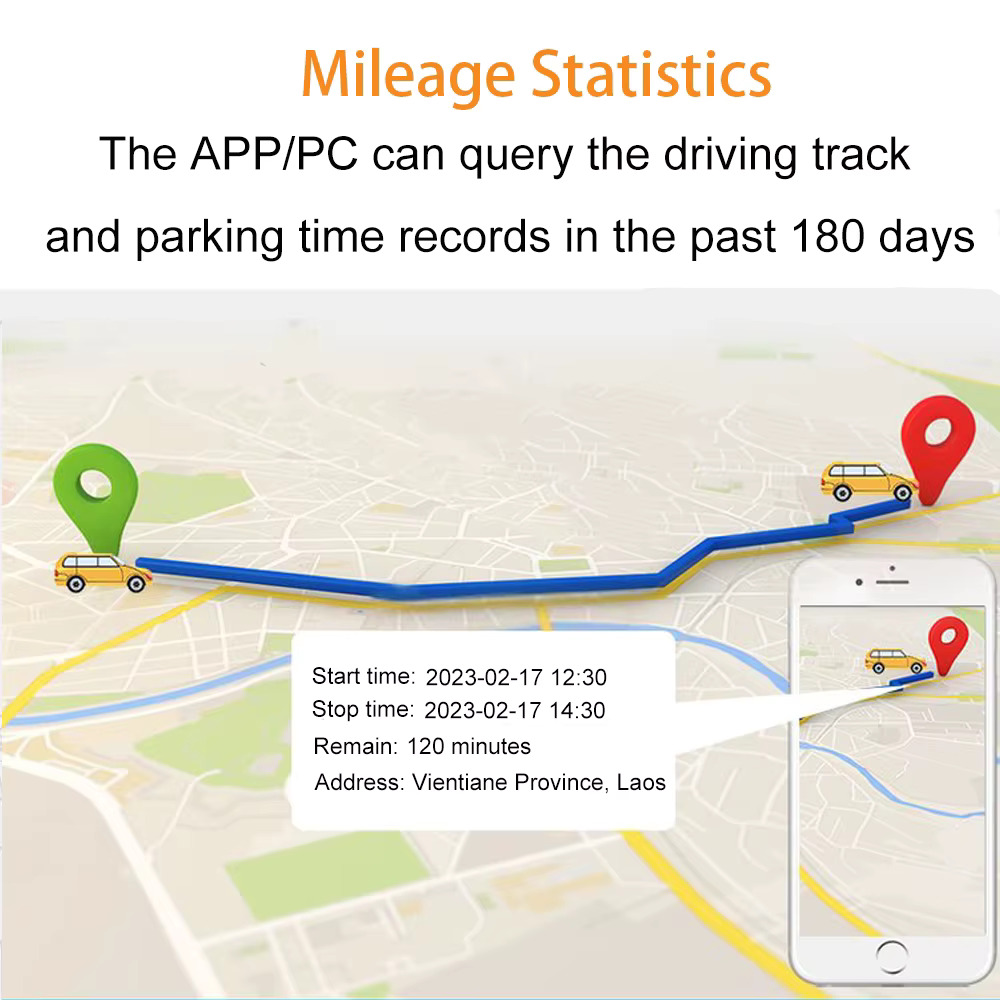

6. History Route Playback.
7. Wide Operating Voltage 9-95V DC, compatible with vehicles on the market!
8. Remotely Cut Off & Resume power.
9. Signal Jamming Detection (MV930G)
10. Low Voltage Alarm
11. Anti-theft Alarms: Vibration alarm, Displacement alarm, Geo-fence alarm, Power failure alarm, Tow alarm, Overspeed Alarm.
|
Model
|
MV930G
|
|
Weight
|
70g
|
|
Dimensions
|
76mm(L)*32mm(W)*32mm(H)
|
|
Battery
|
Built-in 3.7V 60mAh Polymer Battery
|
|
Working Voltage
|
9-95V DC
|
|
Working Current
|
12V/Average 56mA
|
|
Sleep Current
|
12V/Average 7.7mA
|
|
Working Temperature
|
-20℃ – 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
5000pcs GPS data can be stored at network blind area
|
|
SIM Card
|
Nano SIM
|
|
Cellular Antenna
|
Built-in, FPC
|
|
Working Frequency
|
4G GSM/GPRS: 850/900/1800/1900MHz
|
|
4G LTE CAT1: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66; LTE-TDD: B34/B38/B39/B40/B41
|
|
|
GNSS
|
GPS+BDS
|
|
GPS Frequency
|
L1: 1575.42±1.023MHz
|
|
BDS Frequency
|
B1:1561.098±2.046MHz
|
|
Satellite Channels
|
32
|
|
Hot/Cold Start
|
<1s，<32s @ Open Sky
|
|
GNSS Antenna
|
Built-in Ceramics GNSS Antenna, 25mm*25mm*4mm
|
|
Positioning Type
|
GNSS+BDS+LBS+AGPS
|
|
Accuracy
|
Location accuracy: <10m（1σ）
|
|
Timing accuracy: <30ns（1σ）
|
